Wood | Thermo

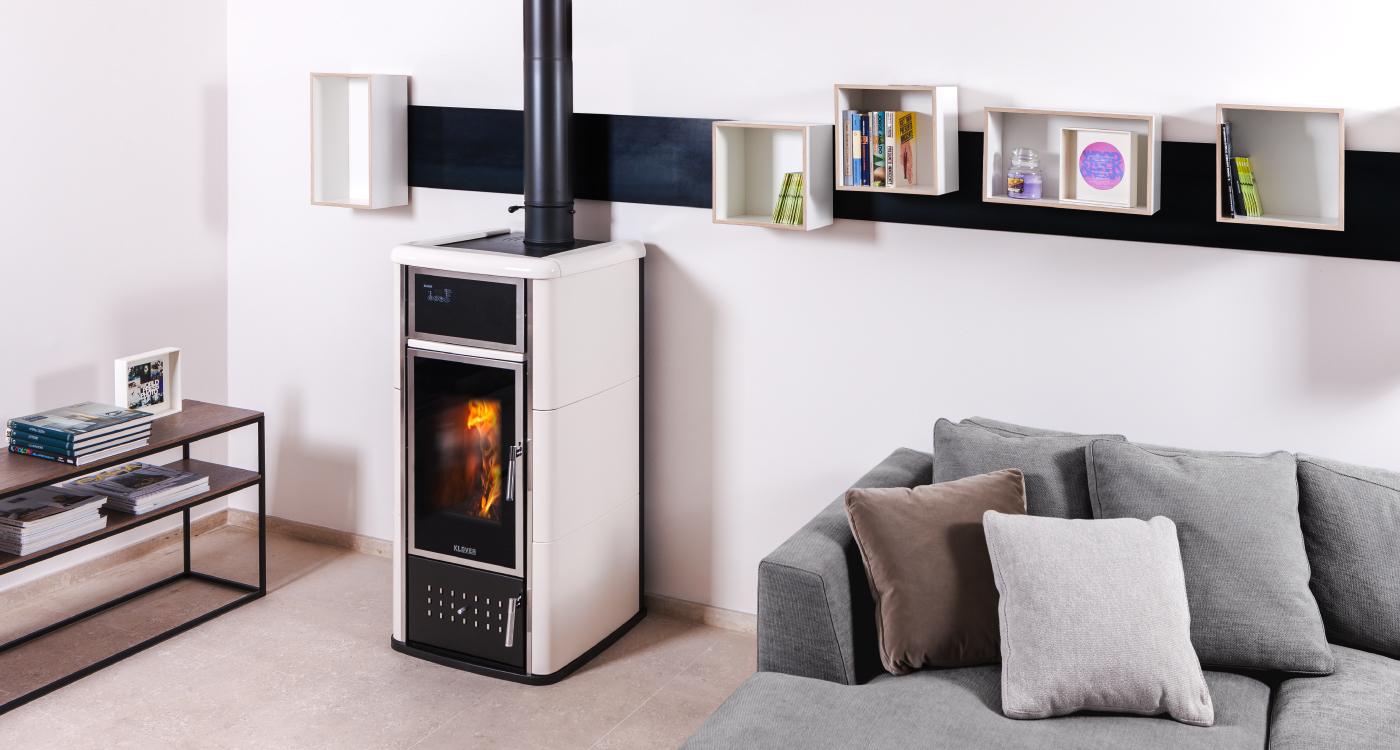

Belvedere 20

17,30 Kw • cm 60x56x118 h • 260 kg
legna
Klover
  • Find retail outlet
  • Download catalogue
  • Request quote

11,8 kW

5,5 kW

85,2%

Developed in the KLOVER workshops to increase thermal yield and safety, this revolutionary system uses the principle of “bain-marie“ by providing a home heating system fitted with a closed expansion chamber, while the “SICURO TOP“ product has a built-in open chamber and works, therefore, at zero pressure. With this system there are no more dangers due to increased pressure if the water reaches boiling point. The pressure inside the boiler unit is zero. An overflow pipe ensures safety in the event of boiling by discharging excess water from the upper tank, while water may be topped up via an automatic or manual device, depending on the type of model.

All wiring cables are covered with woven fibreglass. This exceptional form of protection against wear and cutting provides a safe connection system over time that is also highly resistant to temperature and contact with hot surfaces.

Extra features

  • Characteristics Electronic circulation pump - BELVEDERE 20 - Klover
    Electronic circulation pump
    Electronic circulation pump

    The advanced electronic circulation pump reduces electrical power consumption to a minimum.

  • Characteristics Double glass - BELVEDERE 20 - Klover
    Double glass
    Double glass

  • Characteristics Glass fiber cable - BELVEDERE 20 - Klover
    Glass fiber cable
    Glass fiber cable

    All cabling is covered in a fibreglass material that provides protection against wear and cutting and is highly temperature resistant.

  • Characteristics Top exit - BELVEDERE 20 - Klover
    Top exit
    Top exit

    Configuration for upper smoke exhaust
